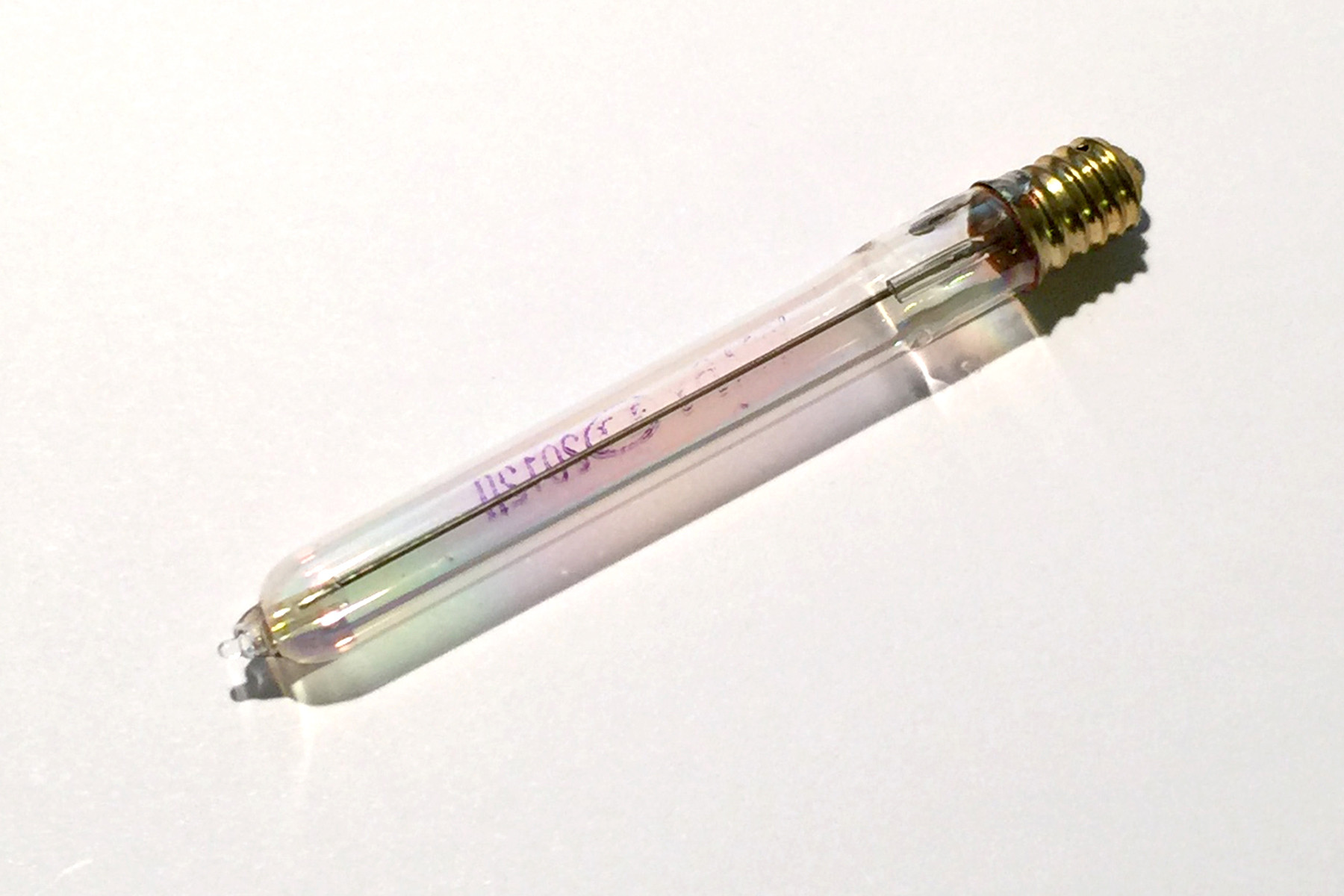

The J304βγ China-made glass modern GM tube is very sensitive to both Gamma and Beta radiation. It has a screw-type base for easy mounting in a Geiger counter. Like the J302βγ, it uses a metalized film coating on the inside of the glass envelope as the cathode. It became quite popular in Japan, especially after the 2011 Fukushima disaster. This is an excellent all-around tube used in a variety of popular commercially employed handheld portable and laboratory Geiger counters.

J304βγ

SKU: CA-J304
$44.95Price
    • Cathode Material: Internal metalized coating (Gas deposition)
    • Anode Material: Tungsten
    • Construction: Glass Envelope
    • Max. Length: 90mm (3.5”)
    • Maximum Diameter: 10.0mm (0.375”)
    • Recommended Anode Resistor: 5m
    • Starting Voltage: 350v
    • Recommended Operating Voltage: 360v
    • Operating Voltage Range: 360v-440v
    • Sensitivity: Gamma and Beta
    • Lifetime: 1 x 10(9)  (1 billion /76 years at background CPM)
    • Background CPM: 25 (in the Los Angeles/Southern California area)
